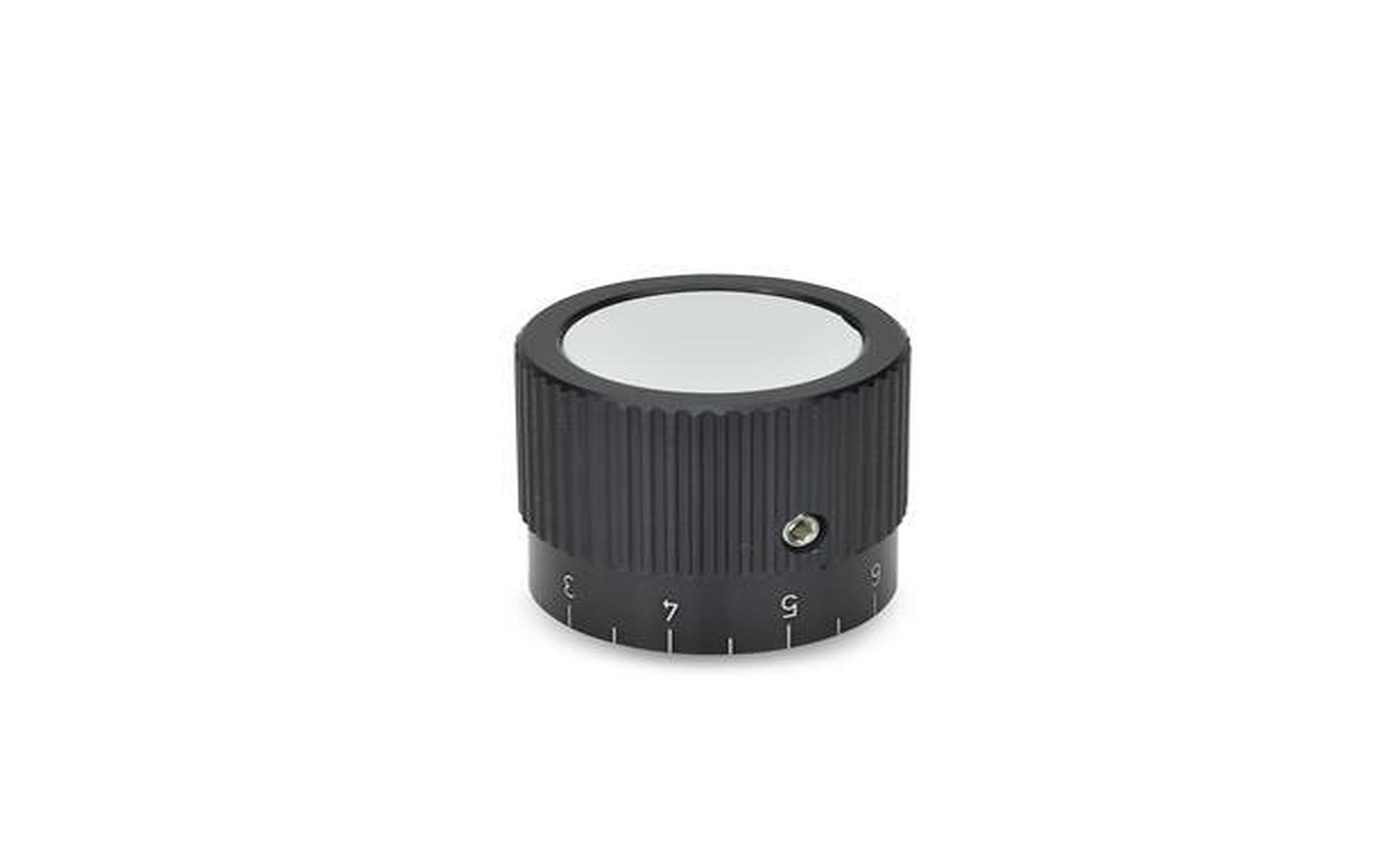

Rotary knobs, aluminium, black anodized

Product information "Rotary knobs, aluminium, black anodized"

The light gray cover of the rotary knobs covers fastening elements as well as protruding or receding shafts and is suitable for printing characters and symbols. The collet design makes it easy to "set" the design with scale or arrow. Scales and marking arrows are absolutely abrasion-resistant and easy to read, as the engraving process creates a contrast between the "aluminium-coloured" numbers and symbols and the black anodized surface. In addition to the standard scale (shape S), these rotary knobs can be supplied with any desired scale. With regard to the line pattern, number sequence, number position and number sequence, the clearly illustrated ordering scheme for scaling should be used.

Form:	B, neutral, ohne Markierung oder Skala
Hersteller:	Ganter
L (mm):	12,5
Norm:	nicht angegeben
X-Line:	1
d1 (mm):	22
d2 (mm):	B 5
d4 (mm):	16
d5 (mm):	14
d6:	M 4
d7 (mm):	20
h1 (mm):	22
h2 (mm):	16
h3 (mm):	4,3
h4 (mm):	8
Version:	1, mit Druckschraube
